Product details

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
• Production capacity

No.	Item	ZG115	ZG115enlarge140	ZG115enlarge165
1	Round pipe O.D	Ф48~127mm	Ф48~140mm	Ф60~165mm
2	Round pipe W.T	1.5~5.0mm	1.5~5.0mm	1.5~5.0mm
3	Square pipe	38×38~~100×100mm	38×38~~110×110mm	47×47~130×130mm
4	Square pipe W.T	1.5~4.0mm	1.5~4.0mm	1.8~4.0mm
5	Milling speed	20~60m/min	20~60m/min	20~60m/min
6	Main motor	160KW×2	160KW×2	160KW×2
7	H.F power	400KW	400KW	400KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,HR/CR steel strip or galvanized steel
2	Thickness of strip	1.5~5.0mm
3	Width of strip	145~520mm
4	External diameter of strip	Ф1200~1600mm
5	Internal diameter of strip	Ф500~600mm
6	Weight of strip	7000KG

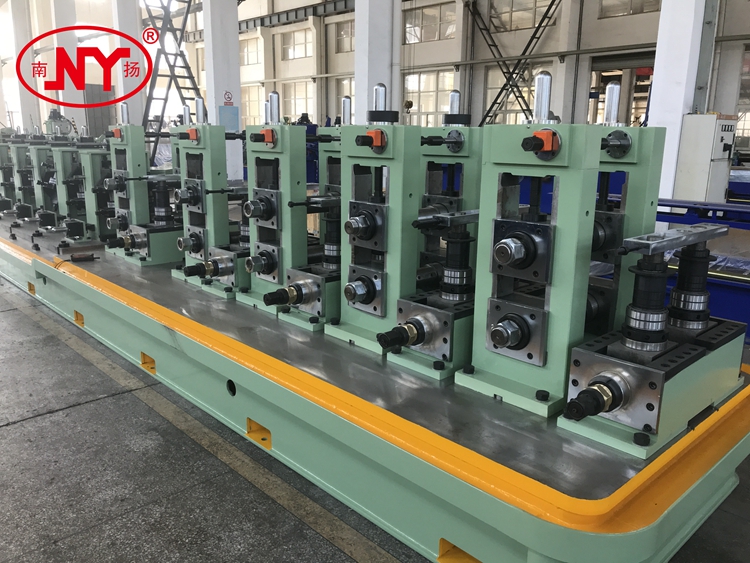

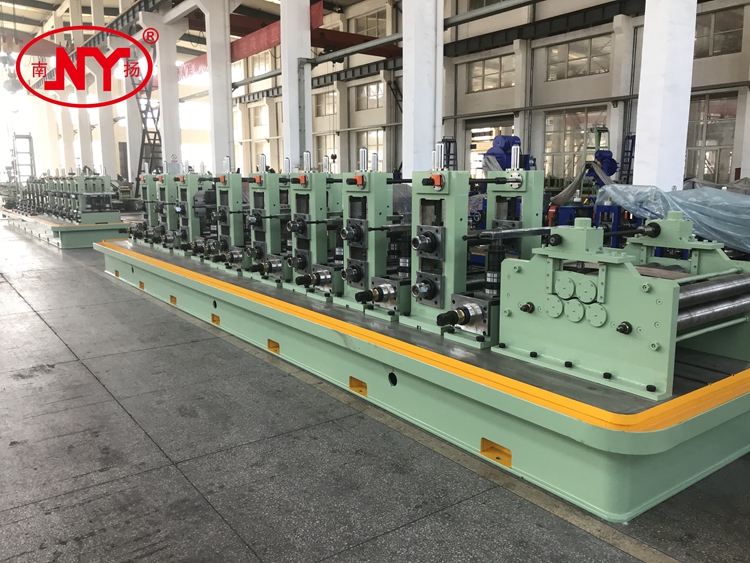

• Photo for reference
