Product details

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
• Production capacity

No.	Item	ZG165	ZG165enlarge219
1	Round pipe O.D	Ф50.8~165mm	Ф76~219mm
2	Round pipe W.T	2.0~6.0mm	2.0~6.0mm
3	Square pipe	40×40~130×130mm	60×60~170×170mm
4	Square pipe W.T	2.0~5.0mm	2.0~5.0mm
5	Milling speed	15~50m/min	15~45m/min
6	Main motor	200KW×2	200KW×2
7	H.F power	500KW	500KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,HR/CR steel strip or galvanized steel
2	Thickness of strip	2.0~6.0mm
3	Width of strip	160~690mm
4	External diameter of strip	Ф1200~1600mm
5	Internal diameter of strip	Ф500~600mm
6	Weight of strip	9000KG

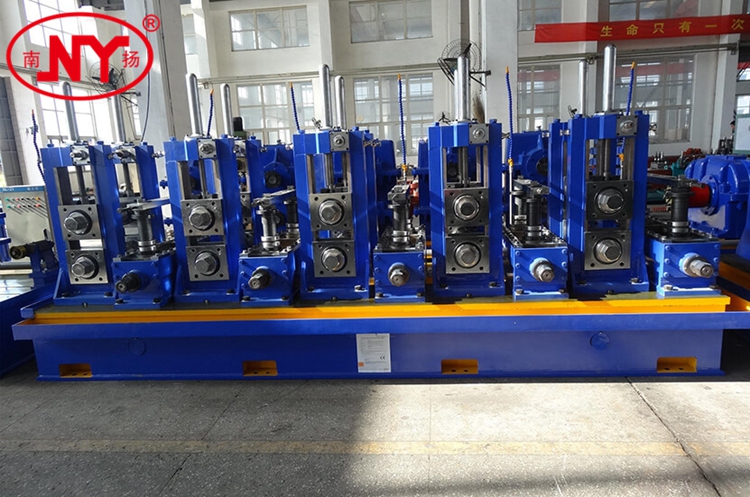

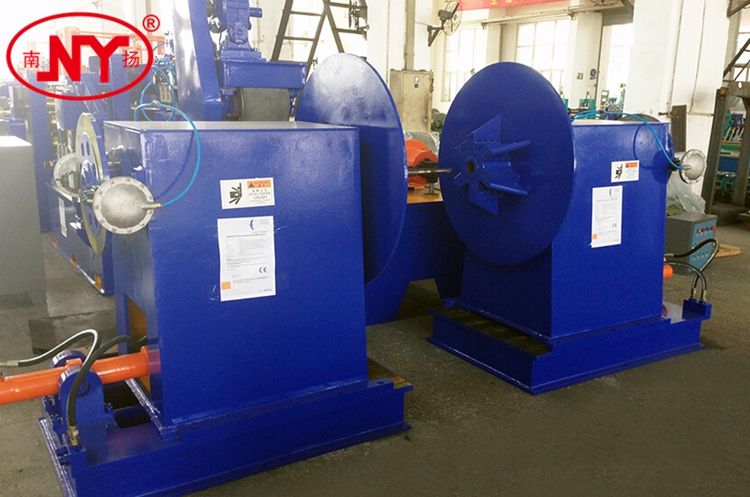

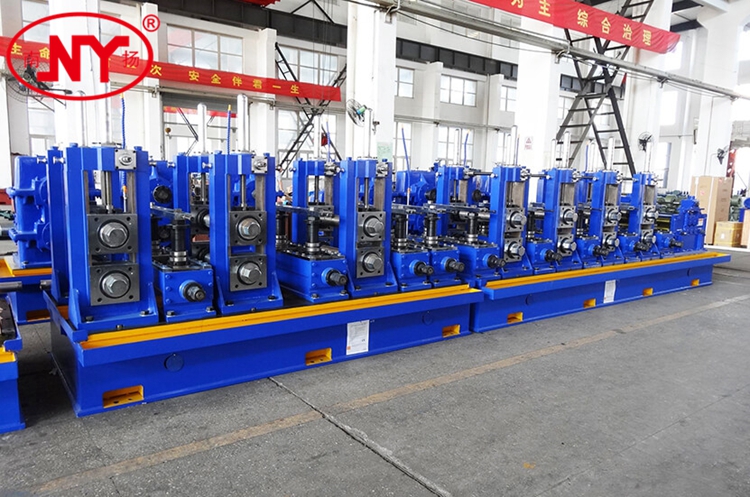

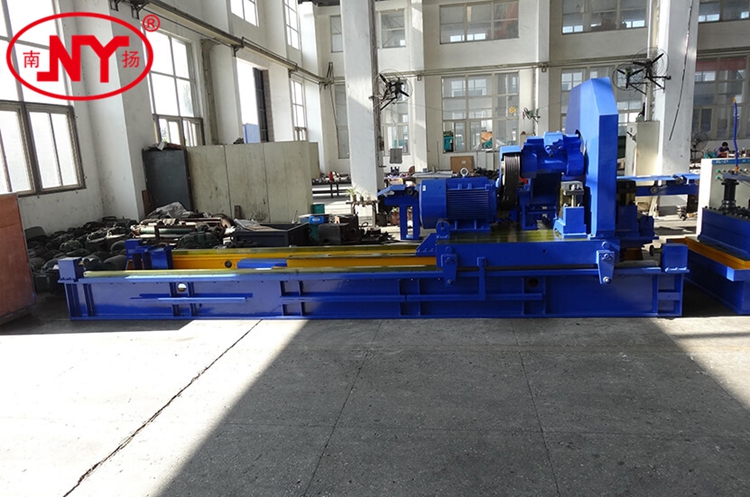

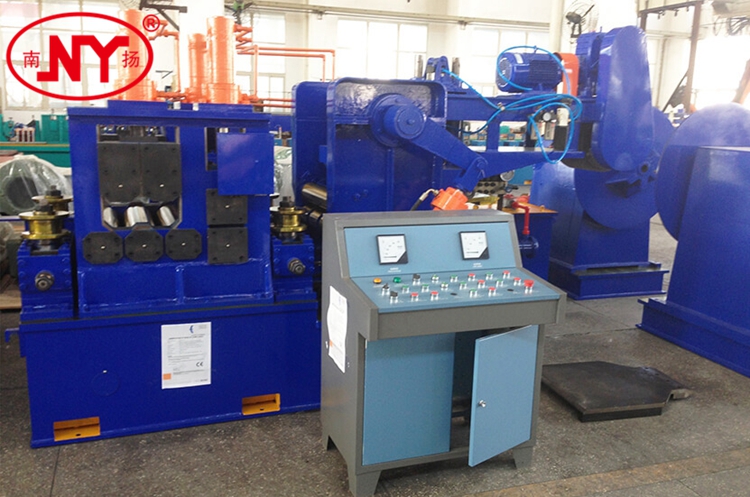

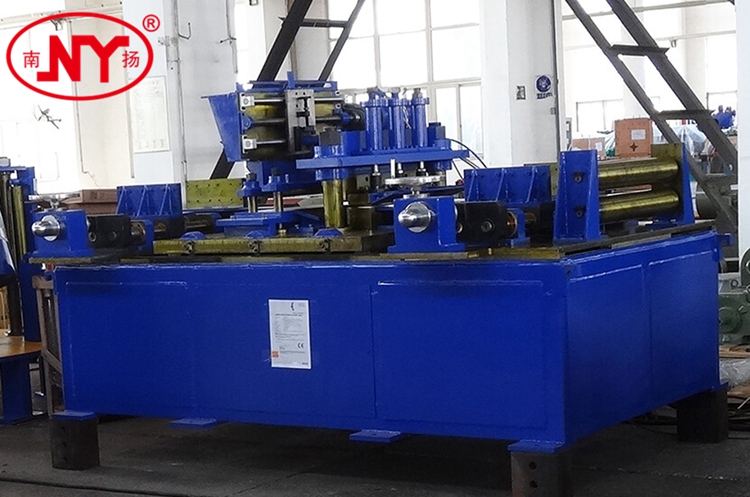

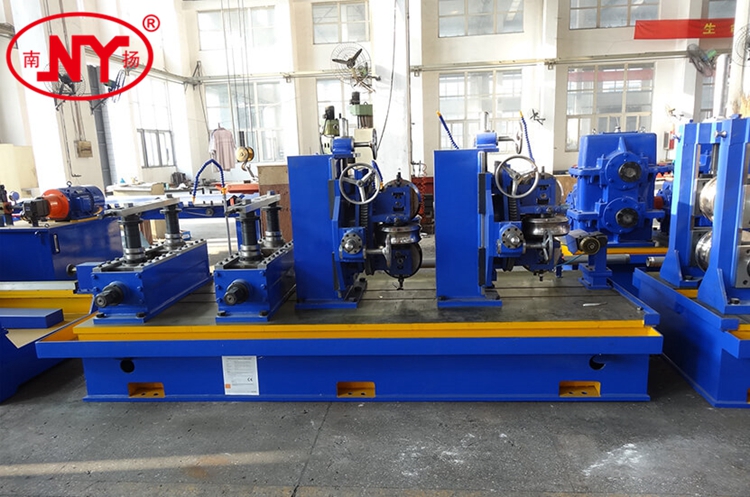

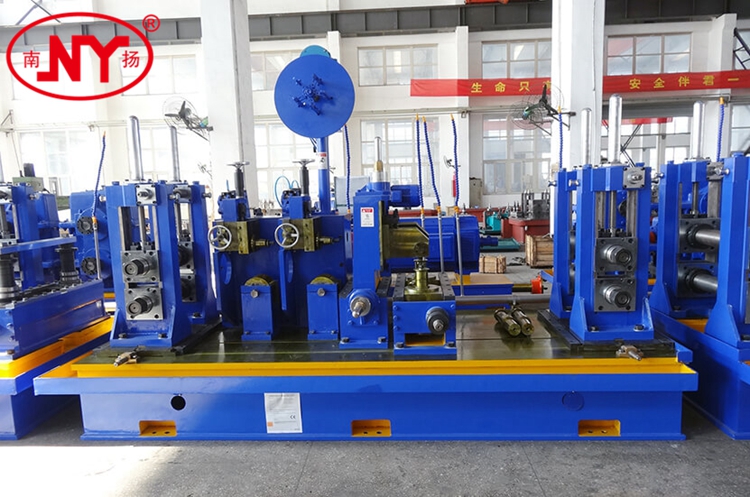

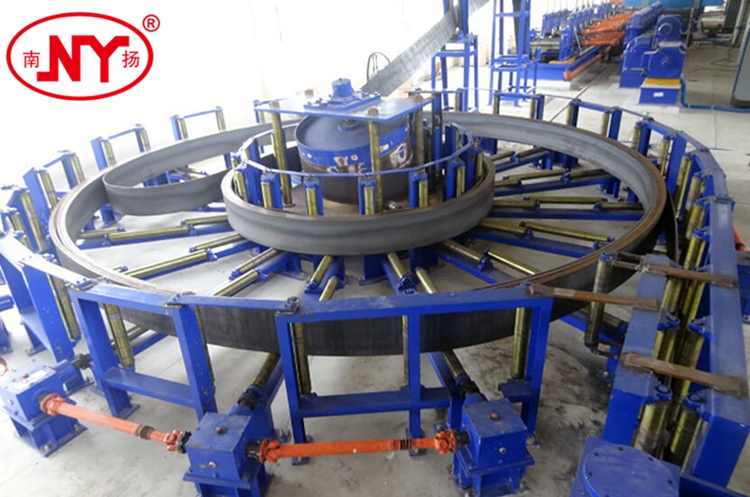

• Photo for reference
