Product details

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
• Production capacity

No.	Item	ZG60	ZG60 High speed	ZG60enlarge76	ZG60enlarge76 High speed	ZG60enlarge102
1	Round pipe O.D	Ф19~63.5mm	Ф19~63.5mm	Ф19~76mm	Ф19~76mm	Ф22~102mm
2	Round pipe W.T	0.8~3.5mm	1.0~3.0mm	1.0~3.0mm	1.0~3.0mm	1.0~3.0mm
3	Square pipe	15×15~50×50mm	15×15~50×50mm	15×15~60×60mm	15×15~60×60mm	17×17~80×80mm
4	Square pipe W.T	0.8~2.75mm	1.0~2.5mm	1.0~2.5mm	1.0~2.3mm	1.0~2.5mm
5	Milling speed	30~90m/min	40~130m/min	30~80m/min	30~130m/min	30~80m/min
6	Main motor	200KW	250KW	200KW	250KW	200KW
7	H.F power	250KW	300KW	250KW	300KW	250KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,HR/CR steel strip or galvanized steel
2	Thickness of strip	0.8~3.5mm
3	Width of strip	60~320mm
4	External diameter of strip	Ф800~1500mm
5	Internal diameter of strip	Ф450~550mm
6	Weight of strip	3500KG

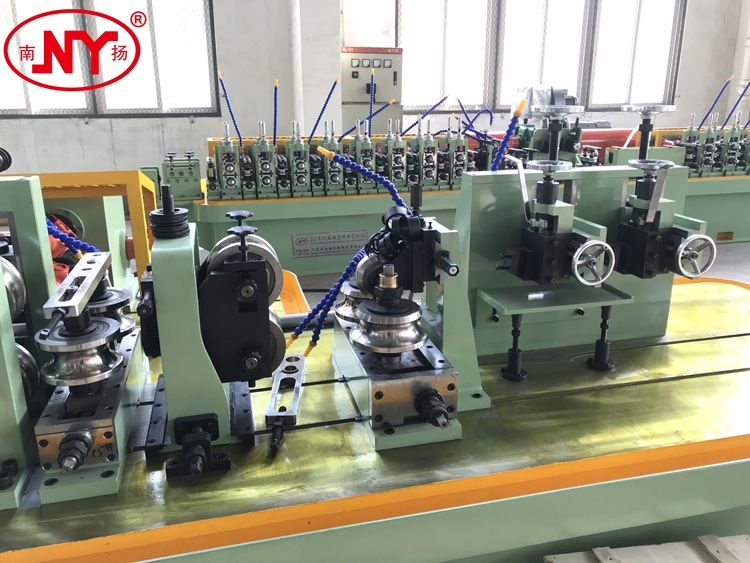

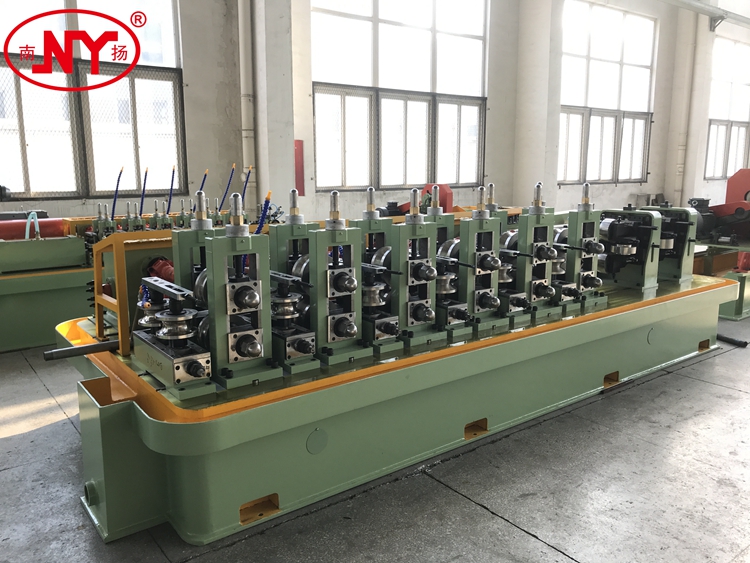

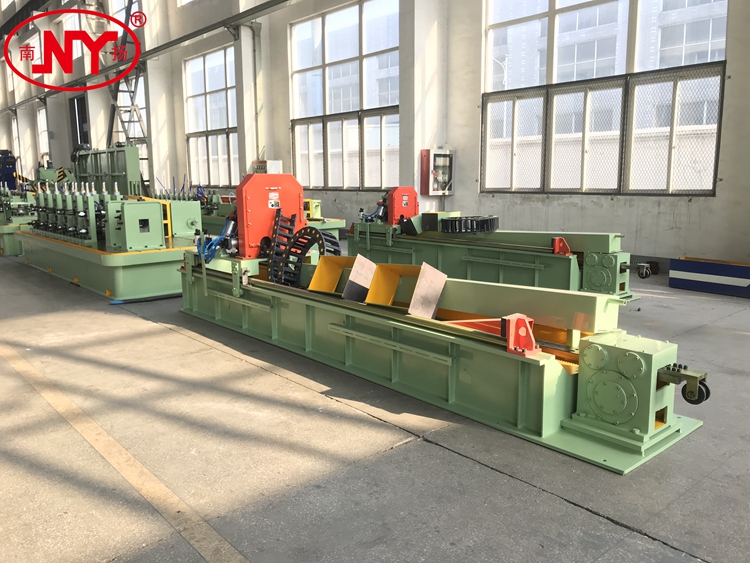

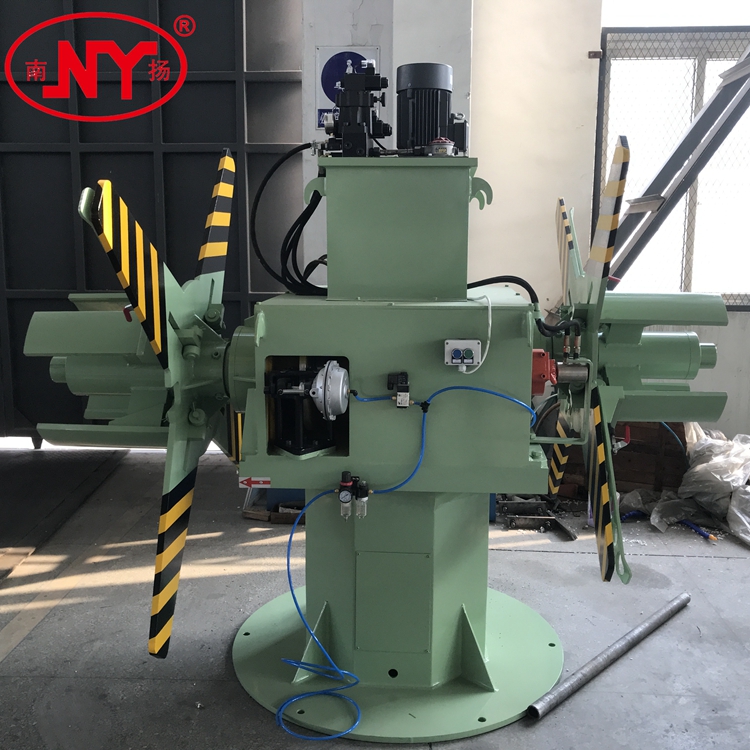

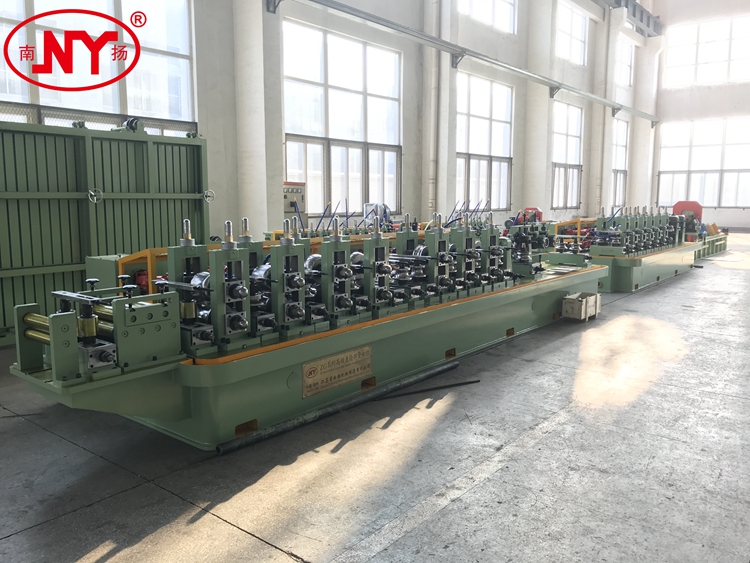

• Photo for reference
