Product details

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

• Production capacity

No.	Item	ZG50	ZG50 High speed	ZG50enlarge76	ZG50enlarge76 High speed	ZG50enlarge100
1	Round pipe O.D	Ф19~63.5mm	Ф19~63.5mm	Ф19~76mm	Ф19~76mm	Ф22~100mm
2	Round pipe W.T	0.7~2.75mm	0.7~2.5mm	0.7~2.75mm	0.7~2.5mm	0.8~2.5mm
3	Square pipe	15×15~50×50mm	15×15~50×50mm	15×15~60×60mm	15×15~60×60mm	17×17~78×78mm
4	Square pipe W.T	0.7~2.3mm	0.7~2.0mm	0.7~2.3mm	0.7~2.0mm	0.8~2.0mm
5	Milling speed	30~100m/min	40~130m/min	30~100m/min	40~130m/min	30~90m/min
6	Main motor	160KW	220KW	160KW	220KW	185KW
7	H.F power	200KW	200KW	200KW	200KW	200KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,HR/CR steel strip or galvanized
2	Thickness of strip	0.7~2.75mm
3	Width of strip	60~315mm
4	External diameter of strip	Ф800~1300mm
5	Internal diameter of strip	Ф450~550mm
6	Weight of strip	2500KG

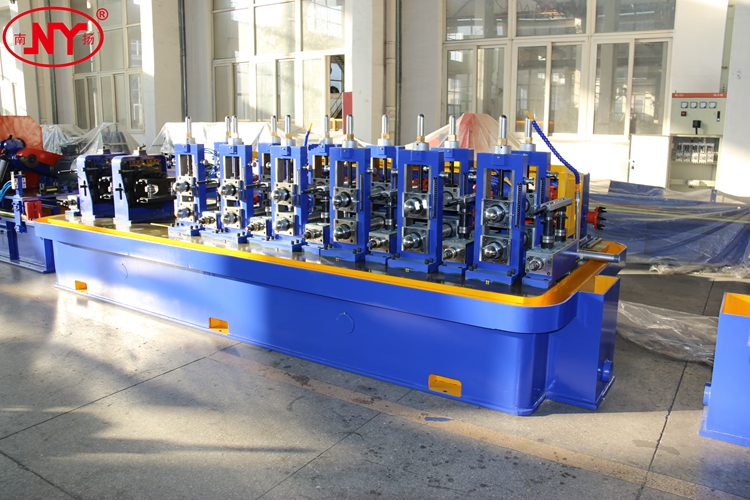

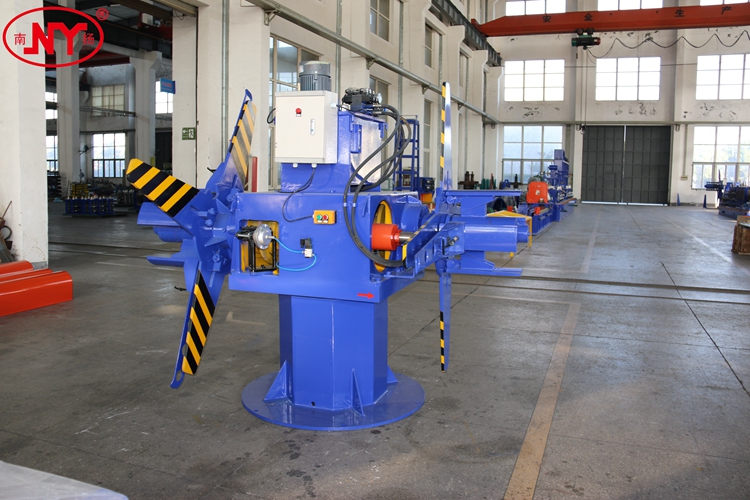

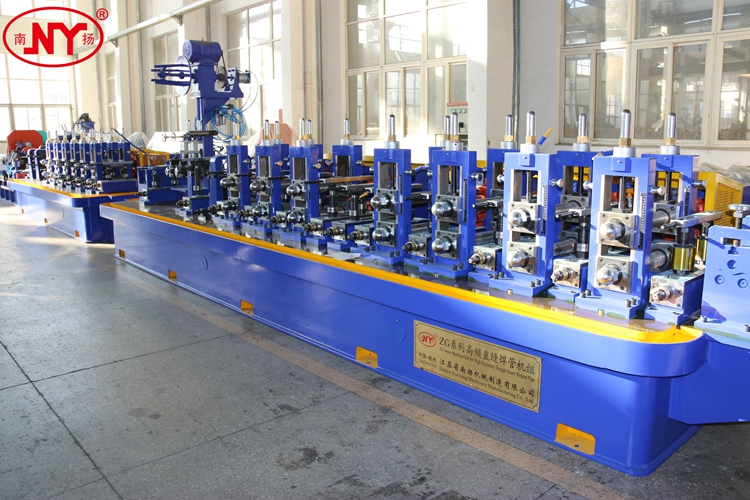

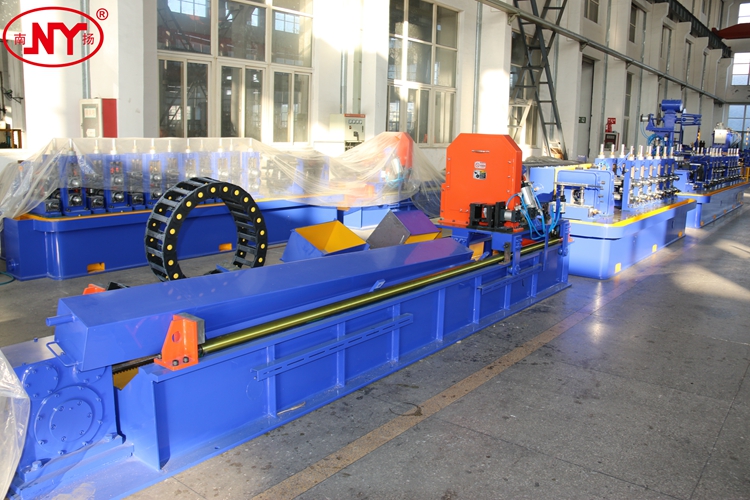

• Photo for reference
•
