Product details

QGF high strength car industry series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
• Production capacity

No.	Item	QGF45	QGF60
1	Round pipe O.D	Ф19~45mm	Ф22~63.5mm
2	Round pipe W.T	1.0~3.5mm	1.2~4.5mm
3	Square pipe	15×15~35×35mm	17×17~50×50mm
4	Square pipe W.T	1.0~3.0mm	1.2~4.0mm
5	Milling speed	20~70m/min	20~60m/min
6	Main motor	110KW×2	132KW×2
7	H.F power	200KW	300KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,Q345,CR steel strip,High strength steel
2	Thickness of strip	1.0~4.5mm
3	Width of strip	60~200mm
4	External diameter of strip	Ф800~1500mm
5	Internal diameter of strip	Ф450~550mm
6	Weight of strip	2500KG

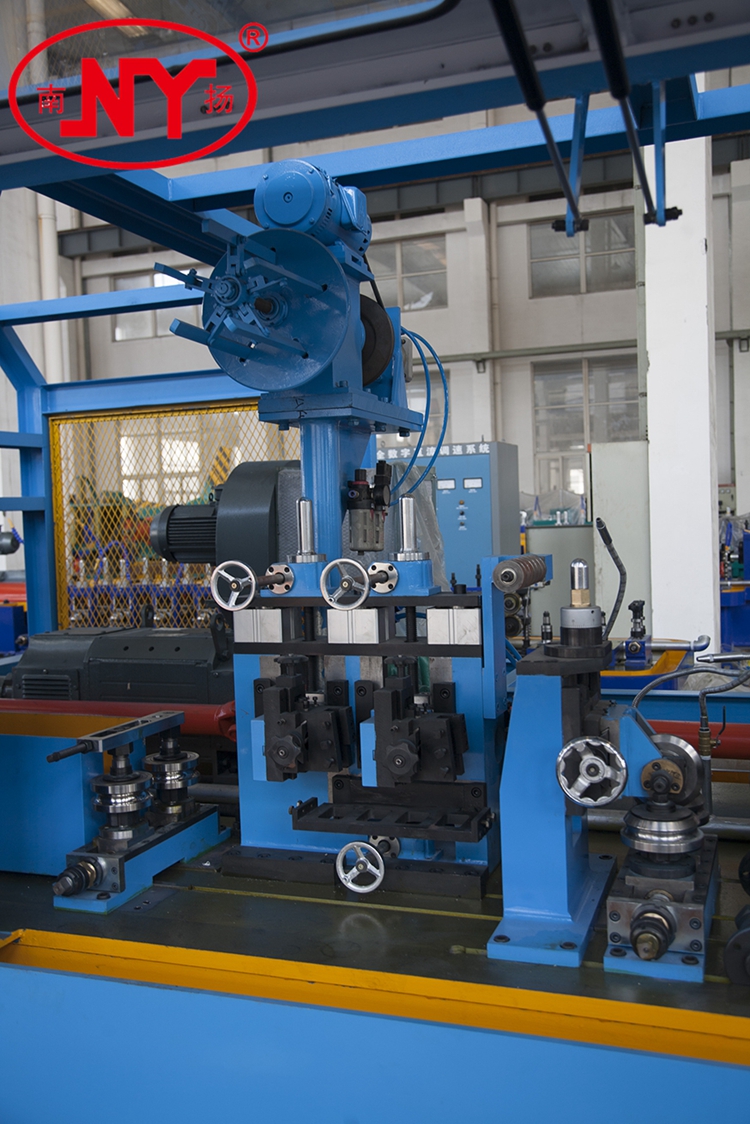

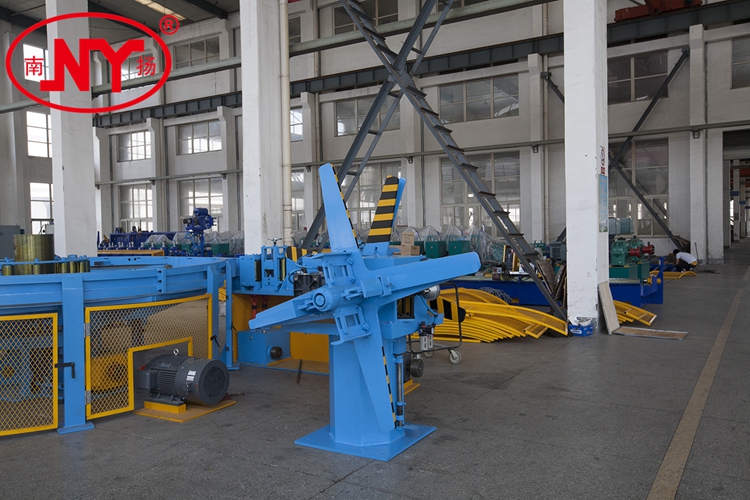

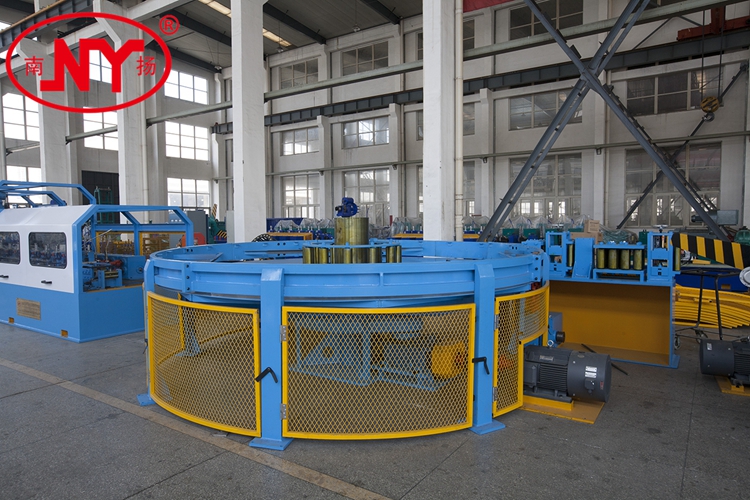

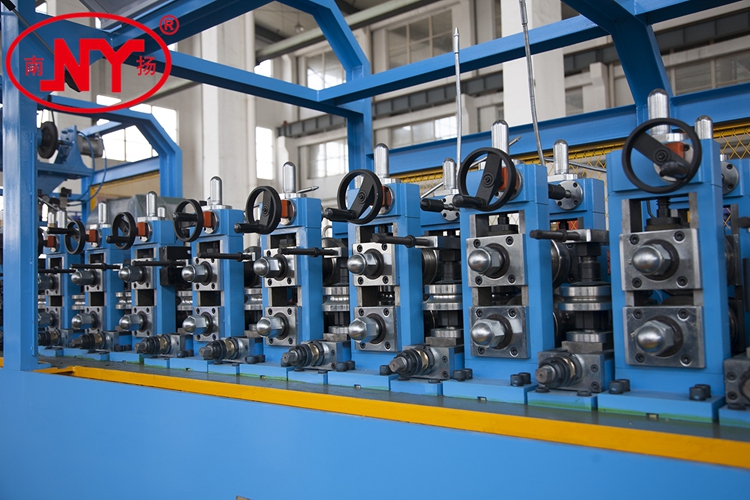

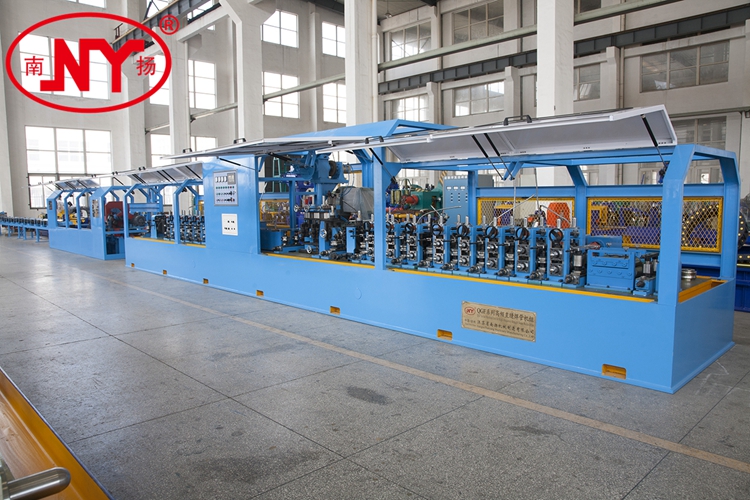

•  Photo for reference
