Product details

QG car industry series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
• Production capacity

No.	Item	QG32	QG50	QG60
1	Round pipe O.D	Ф10~32mm	Ф16~63.5mm	Ф22~76mm
2	Round pipe W.T	0.5~2.0mm	0.8~3.0mm	1.0~3.0mm
3	Square pipe	8×8~25×25mm	13×13~50×50mm	17×17~60×60mm
4	Square pipe W.T	0.5~1.4mm	0.8~2.0mm	1.0~2.5mm
5	Milling speed	30~80m/min	30~70m/min	30~70m/min
6	Main motor	45KW×2	75KW×2	90KW×2
7	H.F power	150KW	200KW	250KW


• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q235,Q345,CR steel strip
2	Thickness of strip	0.5~3.0mm
3	Width of strip	30~240mm
4	External diameter of strip	Ф800~1500mm
5	Internal diameter of strip	Ф450~550mm
6	Weight of strip	2500KG

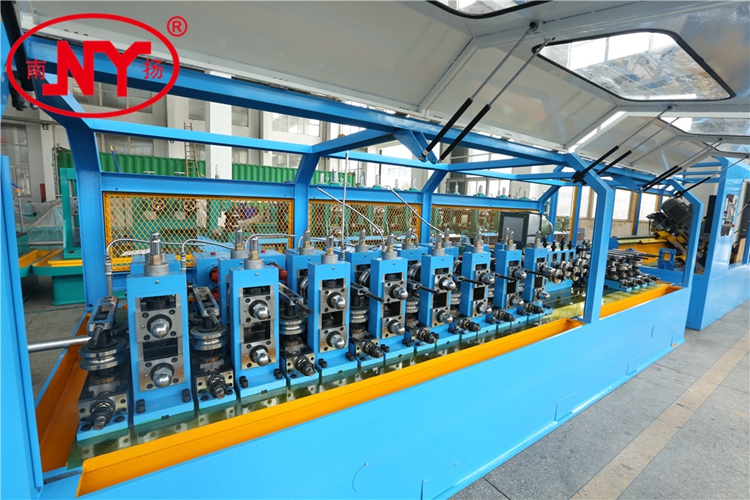

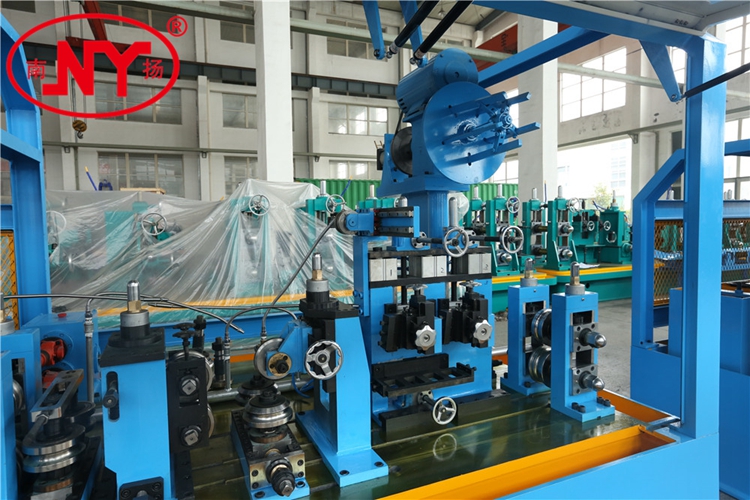

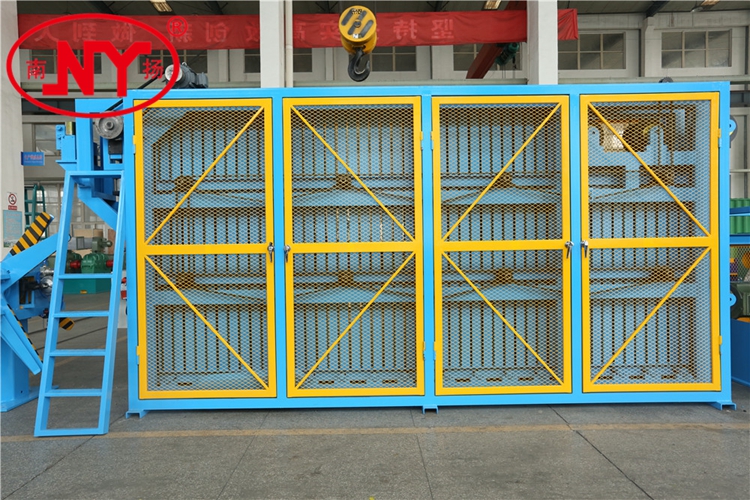

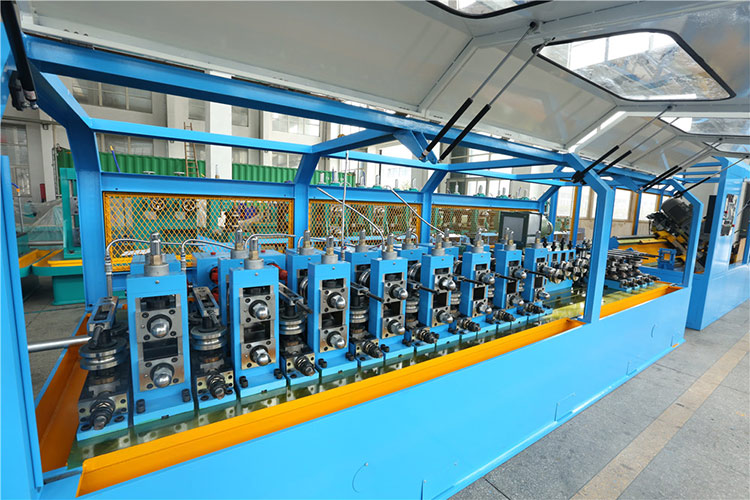

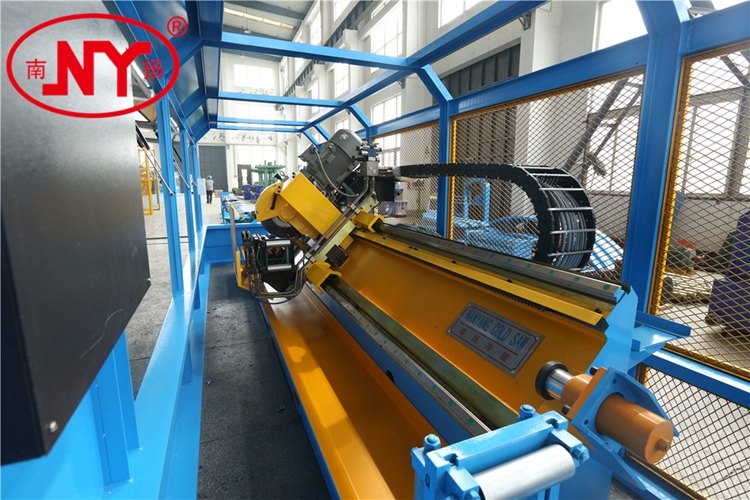

•  Photo for reference
