ZG series

Product details

    ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
    • Production capacity
    No. Item ZG32 ZG32High speed
    1 Round pipe O.D Ф10~40mm Ф13~40mm
    2 Round pipe W.T 0.5~ 1.8mm 0.5~ 1.8mm
    3 Square pipe 8×8~~30×30mm 10×10~30×30mm
    4 Square pipe W.T 0.5~1.4mm 0.5~1.4mm
    5 Milling speed 30~100m/min 40~130m/min
    6 Main motor 90KW 132KW
    7 H.F power 150KW 150KW
    • Steel strip Specification
    No. Item Working range
    1 Raw Material Q195,Q235,HR/CR steel strip or galvanized
    2 Thickness of strip 0.5~1.8mm
    3 Width of strip 30~125mm
    4 External diameter of strip Ф800~1200mm
    5 Internal diameter of strip Ф450~550mm
    6 Weight of strip 1500KG

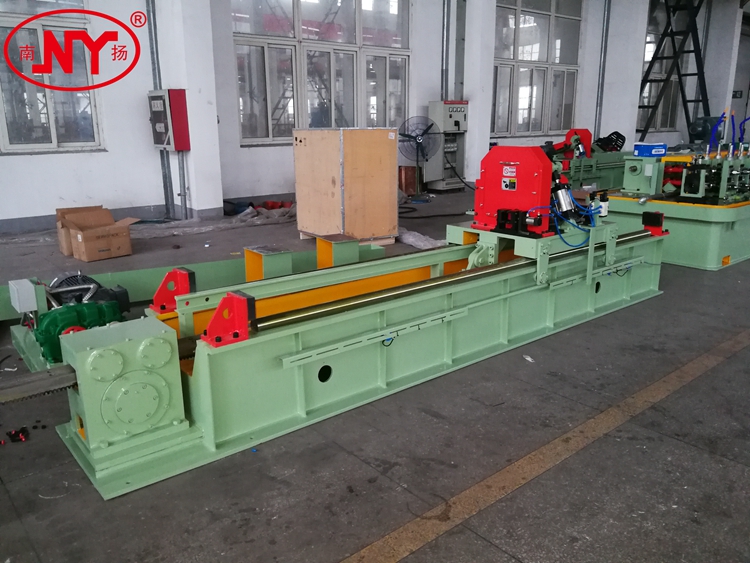

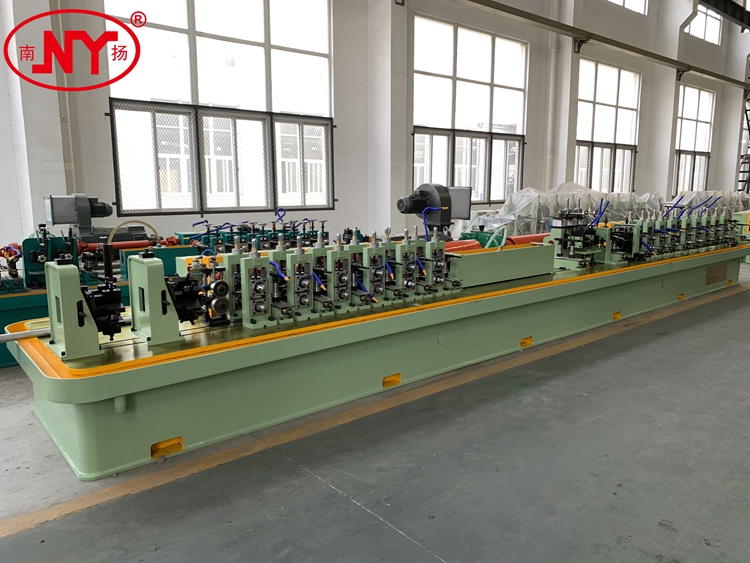

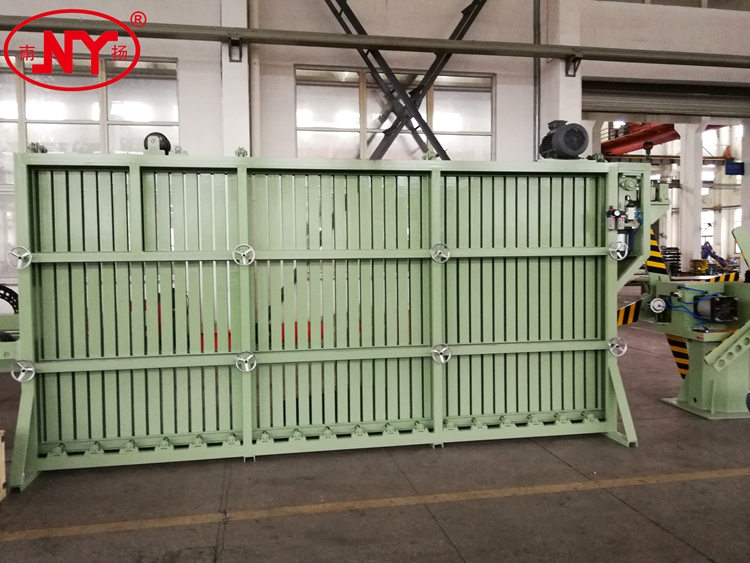

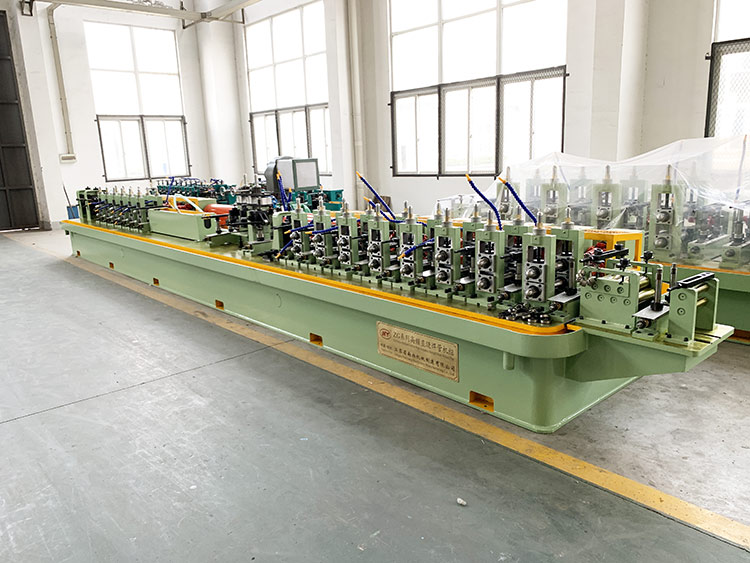

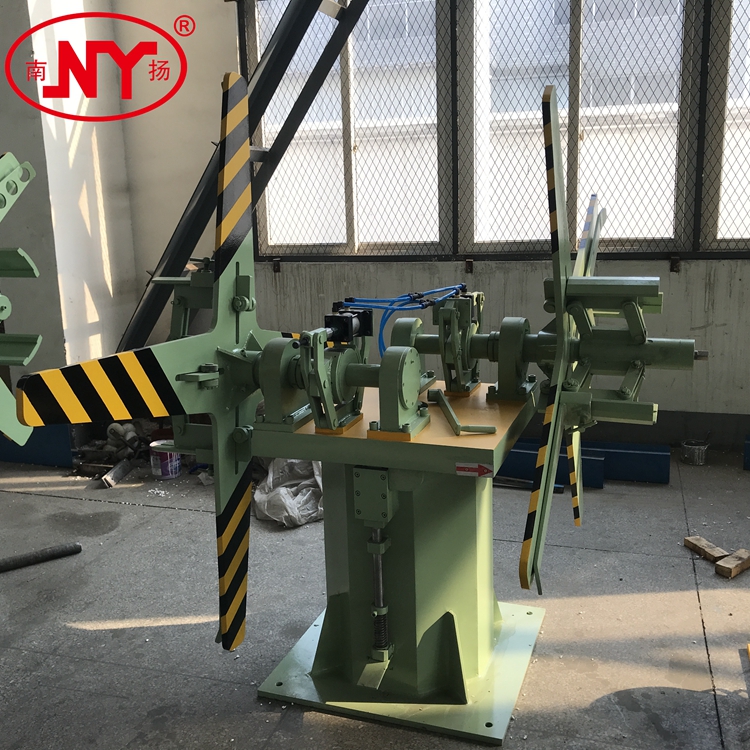

    • Photo for reference
    \
    \
    \
    \
    \
