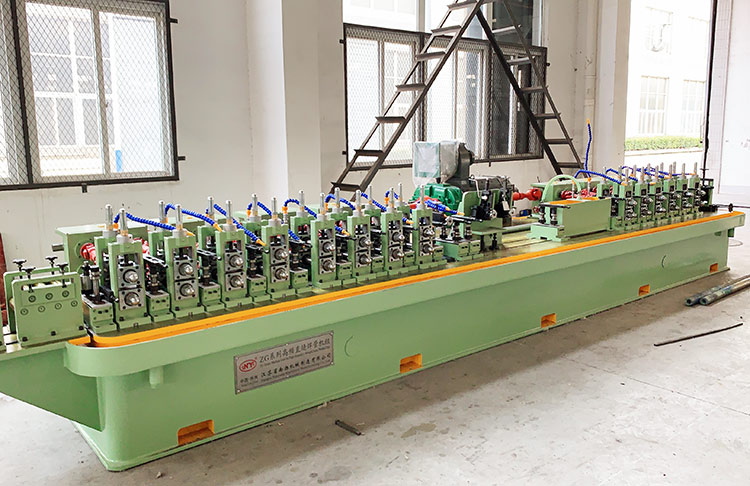

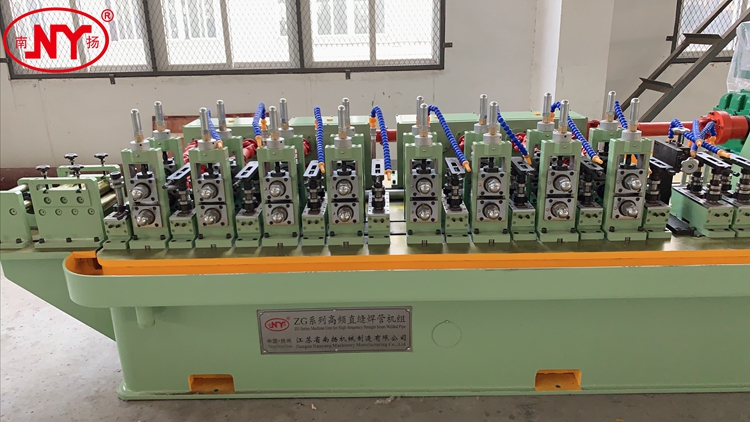

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.
No. | Item | ZG25 | ZG25 High speed |
1 | Round pipe O.D | Ф8~32mm | Ф8~32mm |
2 | Round pipe W.T | 0.4~1.3mm | 0.4~1.3mm |
3 | Square pipe | 6×6~25×25mm | 6×6~25×25mm |
4 | Square pipe W.T | 0.4~1.0mm | 0.4~1.0mm |
5 | Milling speed | 30~100m/min | 40~130m/min |
6 | Main motor | 45KW | 55KW |
7 | H.F power | 100KW | 150KW |
No. | Item | Working range |
1 | Raw Material | Q195,Q235,HR/CR steel strip or galvanized |
2 | Thickness of strip | 0.4~1.0mm |
3 | Width of strip | 25~100mm |
4 | External diameter of strip | Ф600~1200mm |
5 | Internal diameter of strip | Ф350~450mm |
6 | Weight of strip | 800KG |
