Product details

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

• Production capacity

No.	Item	ZG90	ZG90enlarge140
1	Round pipe O.D	Ф32~127mm	Ф48~140mm
2	Round pipe W.T	1.5~4.5mm	1.5~4.5mm
3	Square pipe	25×25~100×100mm	38×38~110×110mm
4	Square pipe W.T	1.5~3.75mm	1.5~3.75mm
5	Milling speed	20~60m/min	20~60m/min
6	Main motor	132KW×2	132KW×2
7	H.F power	400KW	400KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,HR/CR steel strip or galvanized steel
2	Thickness of strip	1.5~4.5mm
3	Width of strip	100~440mm
4	External diameter of strip	Ф1200~1600mm
5	Internal diameter of strip	Ф500~600mm
6	Weight of strip	6000KG

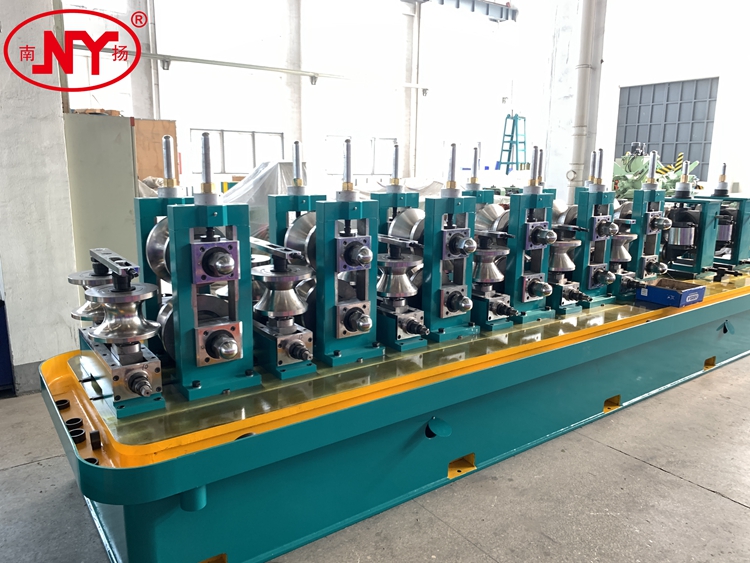

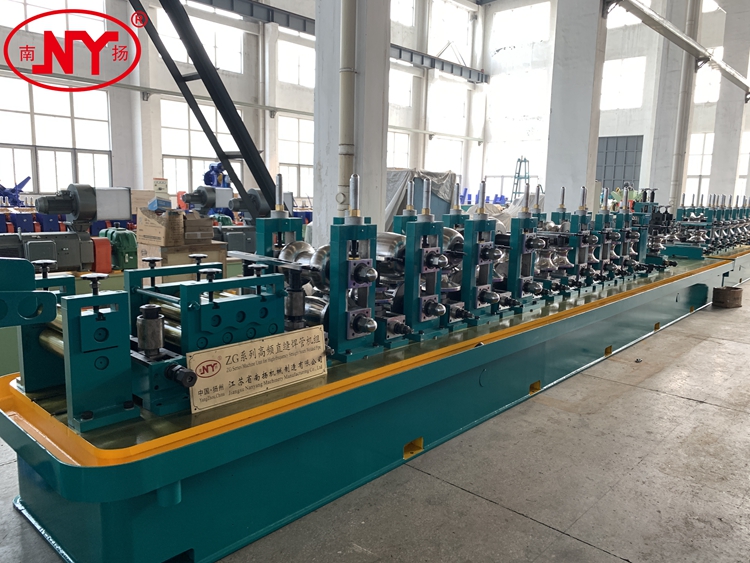

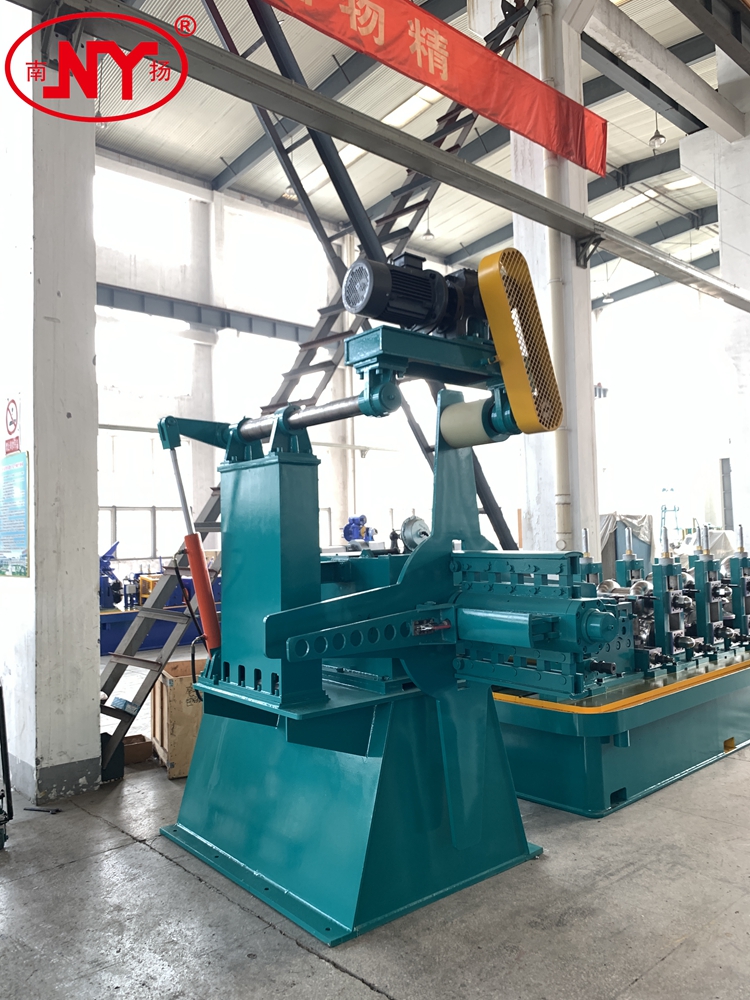

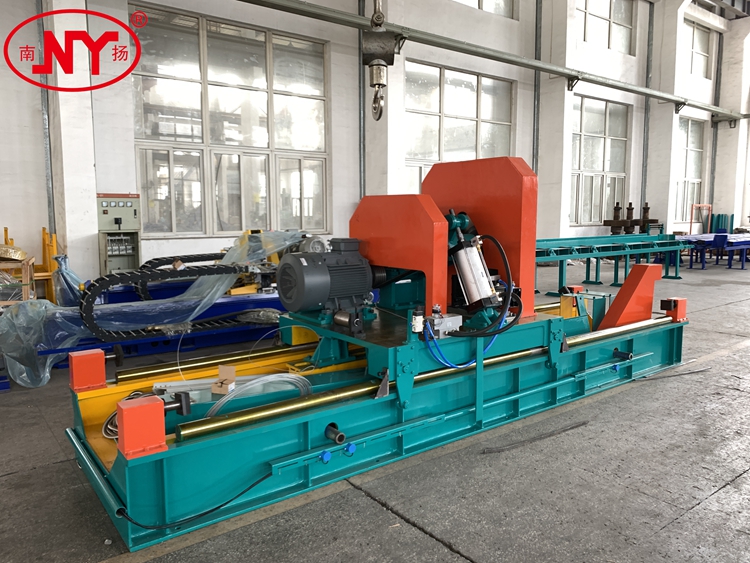

• Photo for reference
