Product details

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

• Production capacity

No.	Item	ZG32	ZG32High speed
1	Round pipe O.D	Ф10~40mm	Ф13~40mm
2	Round pipe W.T	0.5~ 1.8mm	0.5~ 1.8mm
3	Square pipe	8×8~~30×30mm	10×10~30×30mm
4	Square pipe W.T	0.5~1.4mm	0.5~1.4mm
5	Milling speed	30~100m/min	40~130m/min
6	Main motor	90KW	132KW
7	H.F power	150KW	150KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,HR/CR steel strip or galvanized
2	Thickness of strip	0.5~1.8mm
3	Width of strip	30~125mm
4	External diameter of strip	Ф800~1200mm
5	Internal diameter of strip	Ф450~550mm
6	Weight of strip	1500KG

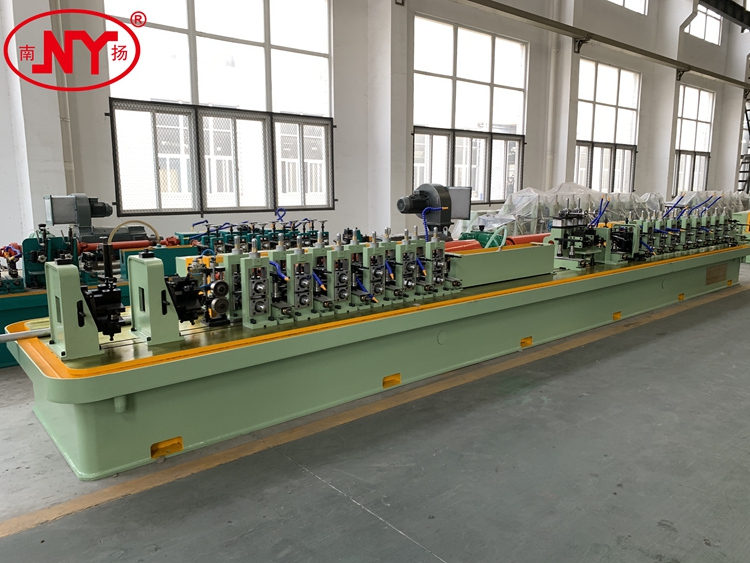

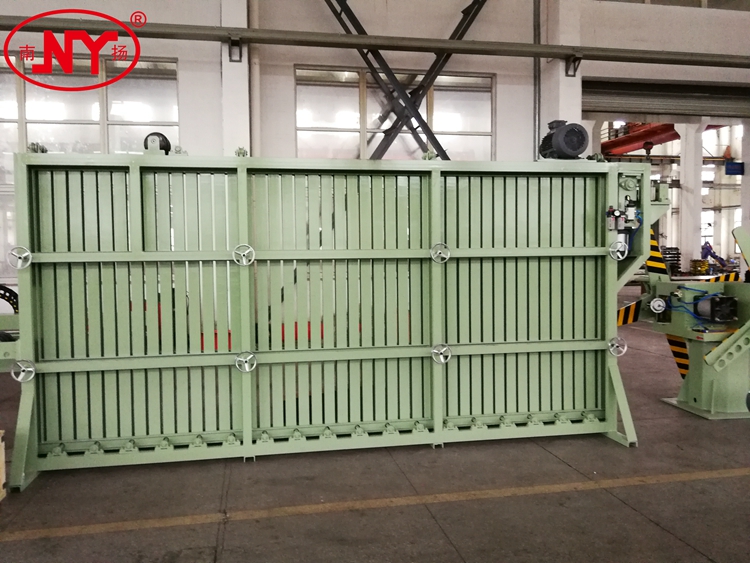

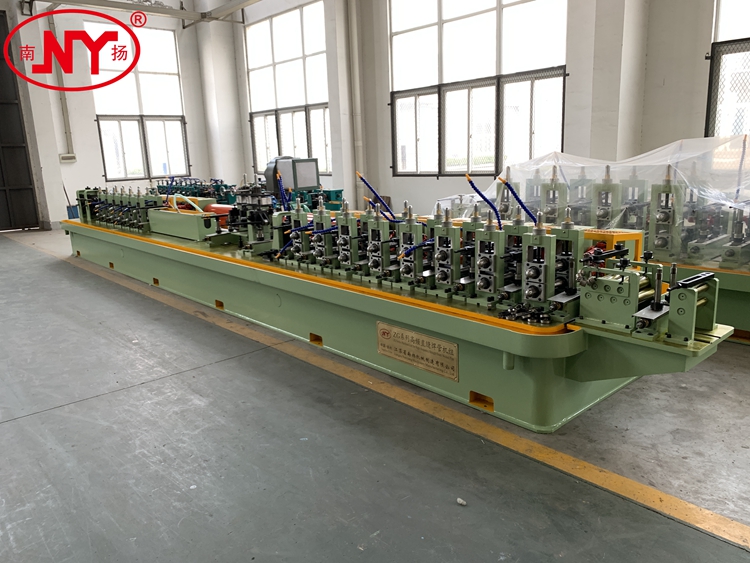

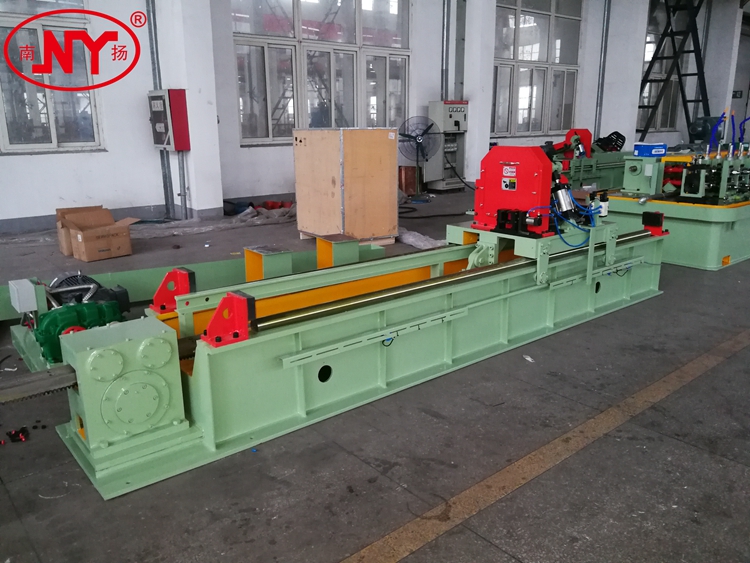

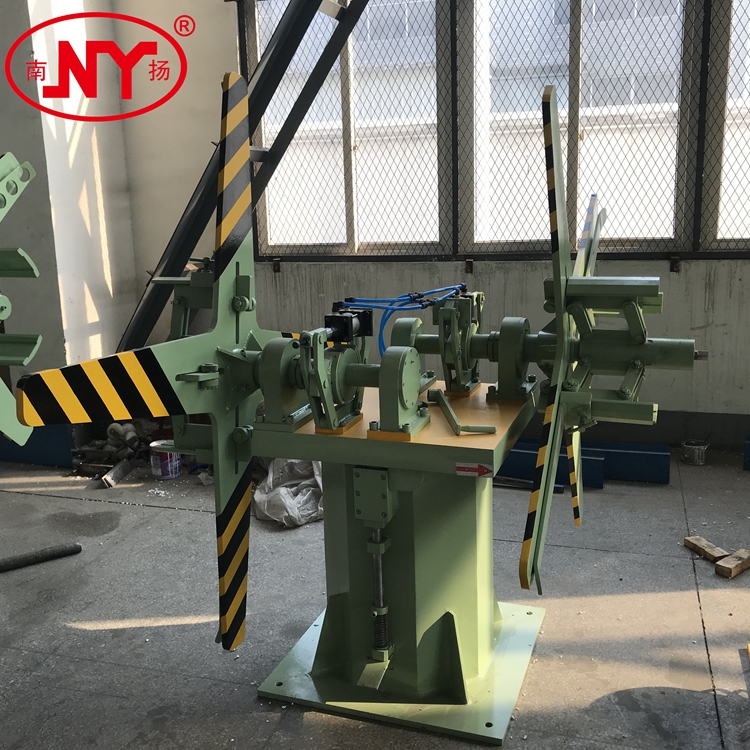

• Photo for reference
