Product details

ZG series high-frequency welding tube mill line is designed to produce round pipe ,square pipe and rectangular pipe . Adopting roll pass design, the production line can manufacture welded steel pipes with good quality machining and high precision assembling.

• Production capacity

No.	Item	ZG16
1	Round pipe O.D	Ф8~25mm
2	Round pipe W.T	0.3~ 1.0mm
3	Square pipe	6×6~20×20mm
4	Square pipe W.T	0.3~0.8mm
5	Milling speed	30~110m/min
6	Main motor	37KW
7	H.F power	100KW

• Steel strip Specification

No.	Item	Working range
1	Raw Material	Q195,Q235,HR/CR steel strip or galvanized
2	Thickness of strip	0.3~1.0mm
3	Width of strip	25~80mm
4	External diameter of strip	Ф600~1200mm
5	Internal diameter of strip	Ф350~450mm
6	Weight of strip	800KG

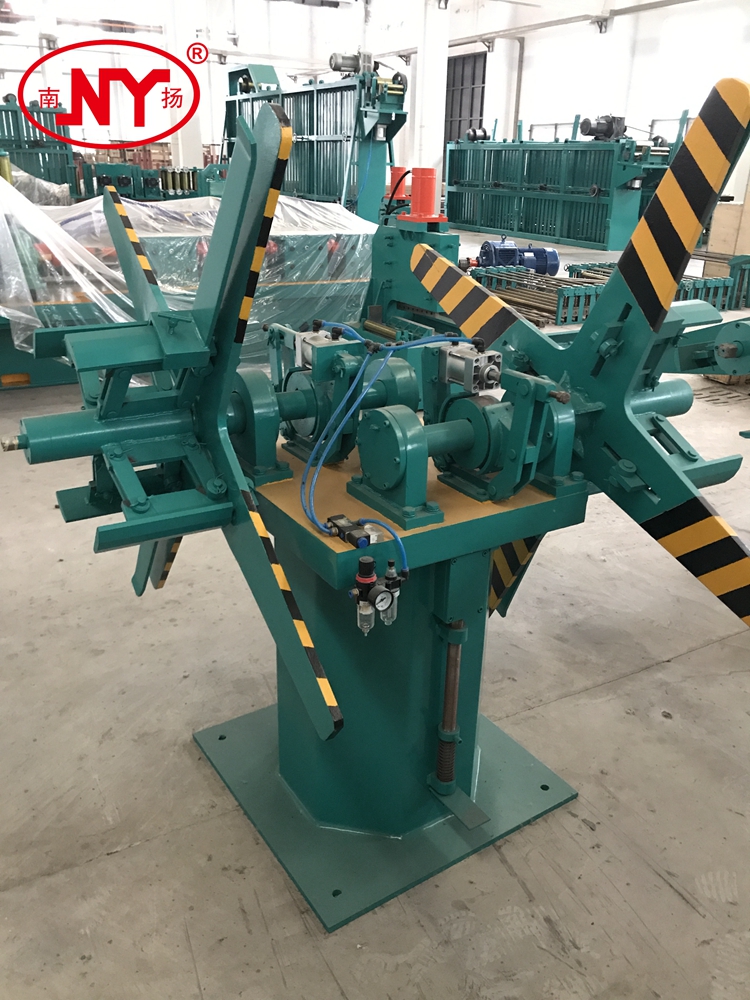

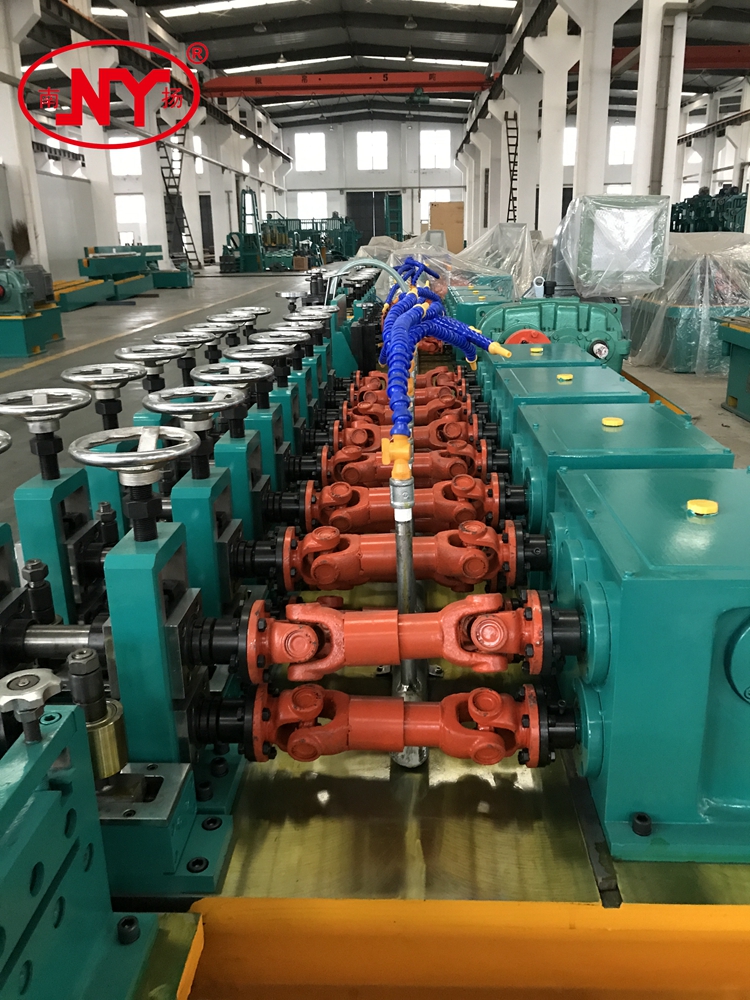

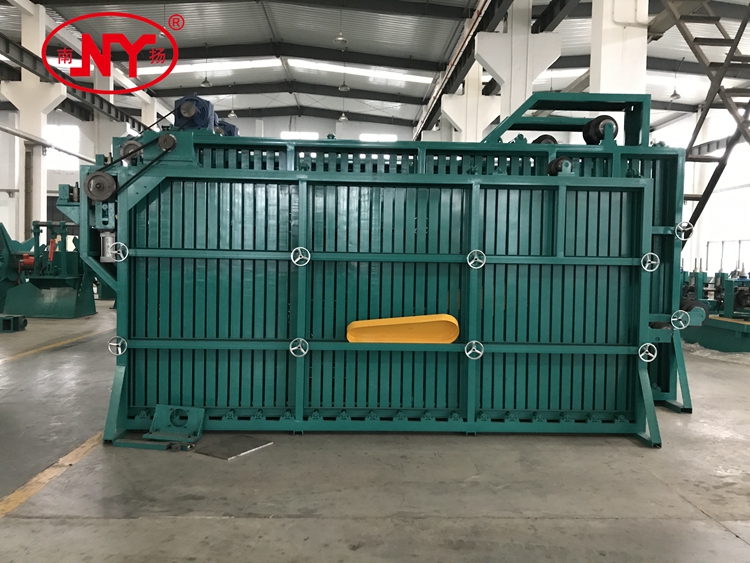

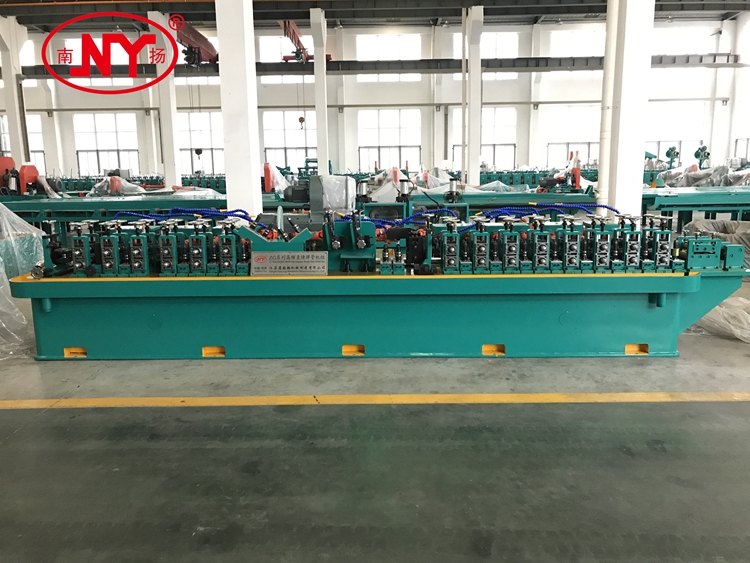

•  Photo for reference
•
•
•
•
